| Title | Blueprint |
|---|---|
| Placard - Astrodome | 209-3007 |
| Placard - Installation and Removal Date | 209-3008 |
| Placard - Oil Tank Cap | 404-180013 |
| Placard - Fuel Warning | 404-180051 |
| Placard - Landing Gear Retract Mech. Grease | 404-180053 |

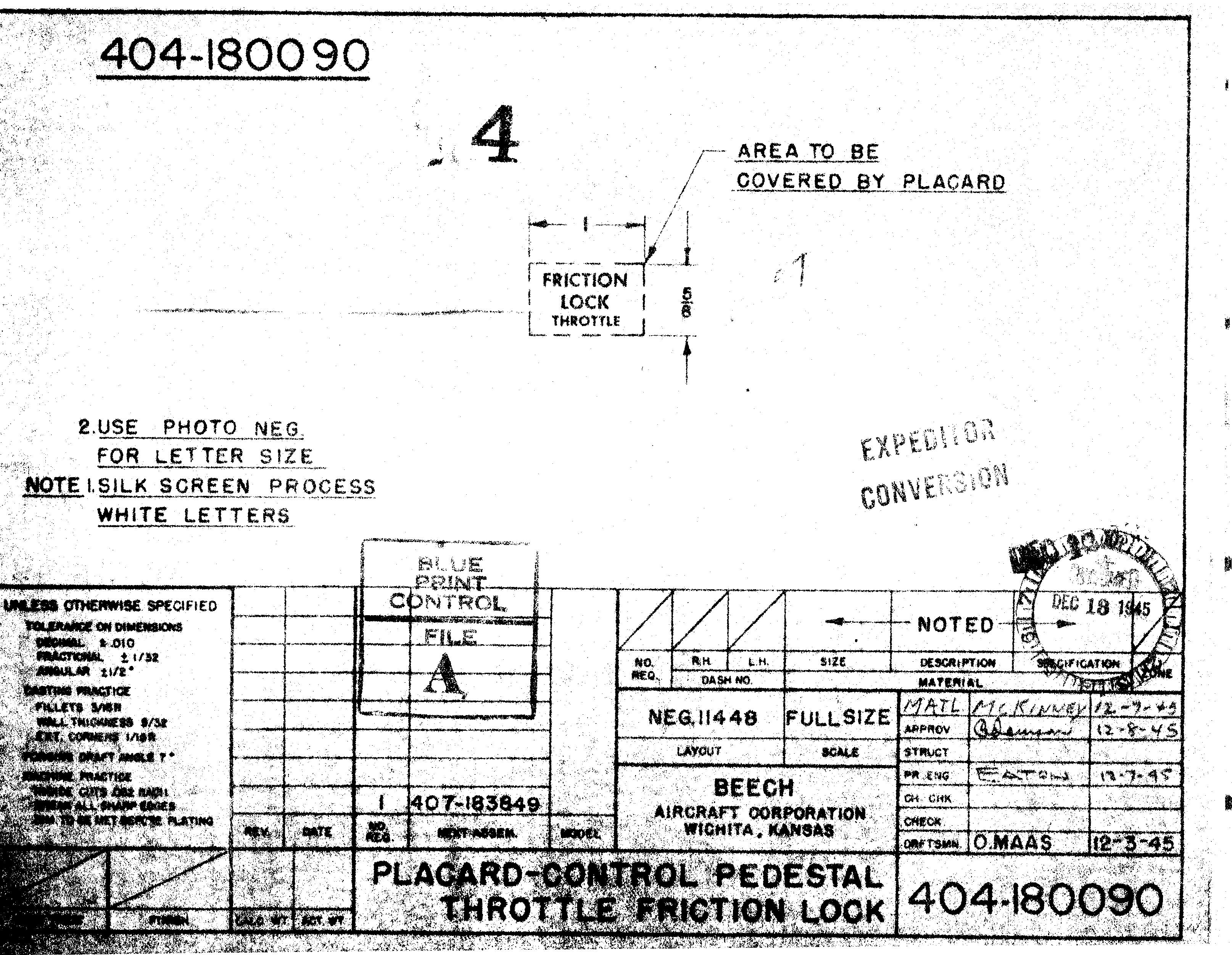

| Placard - Control Pedestal Throttle Friction Lock | 404-180090 |
| Placard - Rudder Tab | 404-180107 |
| Placard - Tab Indicator | 404-180119 |
| Placard - Tail Wheel Lock Control | 404-180120 |
| Placard - Main Cold Air Valve LH | 404-180121 |
| Placard - Main Cold Air Valve RH | 404-180122 |
| Placard - Aileron Tab Indicator | 404-180124 |
| Placard - Rudder Tab Indicator | 404-180132 |
| Placard - Spare Bulbs | 404-180188 |
| Placard - Main Gear Shock Strut LH | 404-180193 |
| Placard - Shock Absorber Drag Strut | 404-180194 |
| Placard - Main Gear Shock Strut | 404-180196 |
| Placard - Assembly - Cable Spares Warning | 404-187016 |
| Placard - Marker Beacon | 407-180045 |
| Placard - Propeller Feathering Controls Circuit Breaker | 437-180028 |

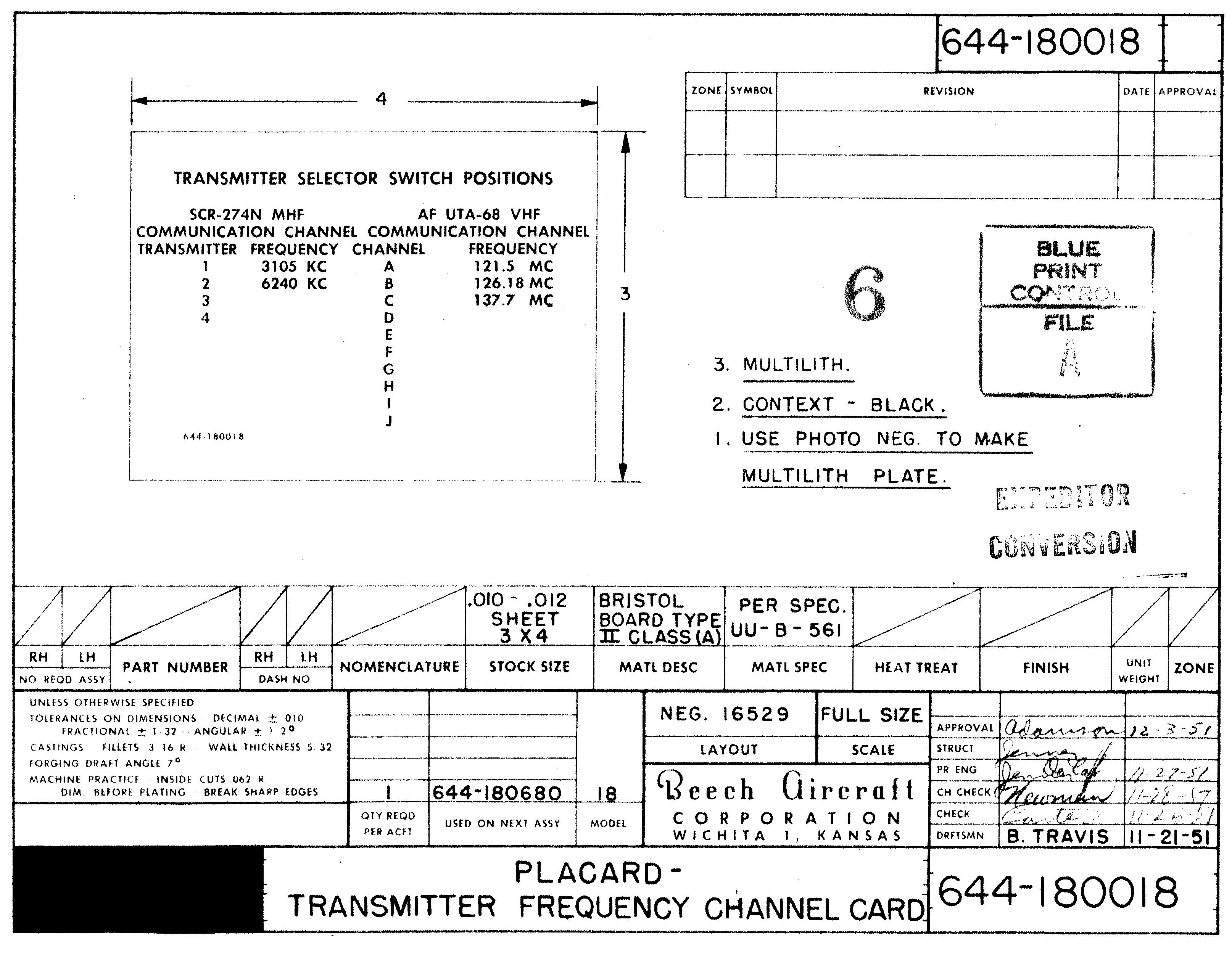

| Placard - Transmitter Frequency Channel Card | 644-180018 |
| Placard - Type B-3 Drift Meter | 644-180034 |
| Placard - Table Light Rheostat | 644-180037 |

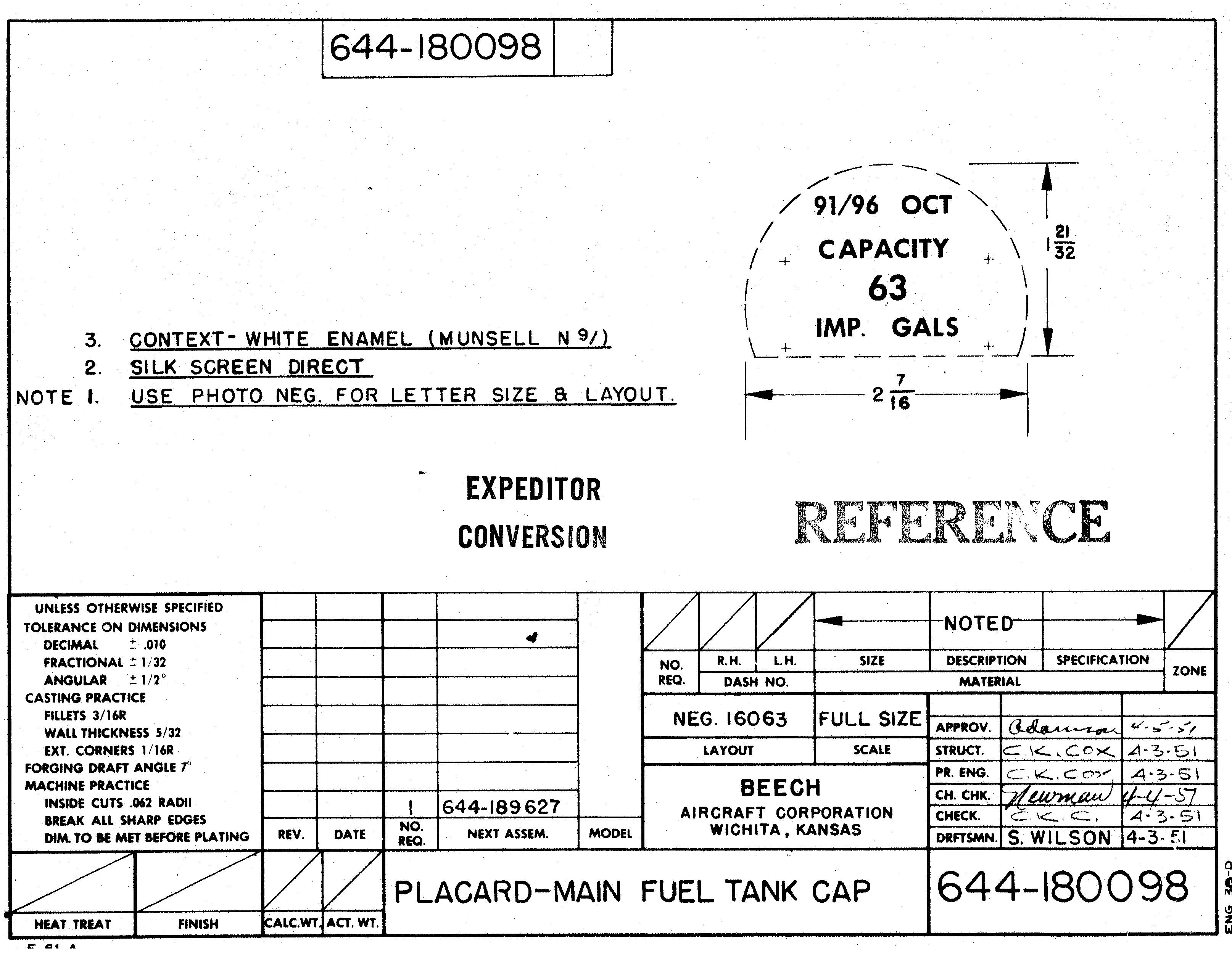

| Placard - Main Fuel Tank Cap | 644-180098 |
| Placard - Rear Fuel Tank Cap | 644-180099 |
| Placard - Unknown | 694-180009 |
| Placard - Insignia and Markings USAF Aircraft | 694-180010 |
| Placard - Electric Turn and Bank | 694-180011 |
| Placard - VHF Nav. Test Receptacle | 694-180012 |
| Placard - Emergency Release Handle | 694-180013 |
| Placard - Vacuum Turn & Bank | 694-180015 |
| Placard - Disconnect Splices, 1rst Navigators Jack Box | 694-180016 |
| Placard - Left Gen. Control Switch | 694-180017 |
| Placard - Right Gen. Control Switch | 694-180018 |
| Placard - Pedestal Controls | 694-180019 |
| Placard - Disconnect Splices, 2nd Navigators Jack Box | 694-180021 |
| Placard - Wheel Shock Strut | 694-180022 |
| Placard - Tail Wheel Shock Strut | 694-180023 |
| Placard - Red Dome Light Switch | 694-180024 |
| Placard - Gyro Magnetic Compass Junction Box | 694-180025 |
| Placard - LH Boost Pump Terminal Switch | 694-180027 |
| Placard - RH Boost Pump Terminal Switch | 694-180028 |
| Placard - Disconnect Splices, 3rd Navigators Jack Box | 694-180029 |
| Placard - Relax Box, Compass | 694-180030 |
| Placard - Flight Conditions | 694-180031 |
| Placard - Emergency Exit | 694-180032 |
| Placard - Right Sub Panel | 694-180033 |
| Placard - Left Sub Panel | 694-180034 |
| Placard - Radio Circuit Breaker Box | 694-180035 |
| Placard - Bank & Turn Power Switch | 694-180036 |
| Placard - Rear Radio Junction Box | 694-180037 |
| Placard - Radio Circuit Breaker Wiring | 694-180039 |
| Placard - Rear Radio Junction Box | 694-180040 |
| Placard - Radio Junction Box | 694-180041 |
| Placard - Electrical Circuit Breaker Wiring | 694-180042 |
| Placard - Emergency Exit | 694-180043 |
| Placard - LH Ammeter Circuit Breakers | 694-180045 |
| Placard - Right Nacelle Junction Box | 694-180046 |
| Placard - Left Nacelle Junction Box | 694-180047 |
| Placard - Radio Junction Box | 694-180049 |
| Placard - RH Ammeter Circuit Breakers | 694-180050 |
| Placard - Forward Radio Terminal Box | 694-180051 |
| Placard - Gyro Magnetic Compass Junction Box | 694-180053 |
| Placard - Electrical Power Fuse Junction Box | 694-180054 |
| Placard - AC Fuses | 694-180055 |
| Placard - Headset and Hand Microphone Hanger | 694-180056 |
| Placard - Emergency Exit Release | 694-180057 |
| Placard - Radio Control Panel Lights Rheostat | 694-180058 |
| Placard - Pilot's Audio Switches | 694-180059 |
| Placard - Co-Pilot's Audio Switches | 694-180060 |
| Placard - Fuel Boost Pump | 694-180061 |
| Placard - Junction Box Warning | 694-180063 |
| Placard - C45G Fuel System | 694-180066 |
| Placard - Omni & Interphone Disconnect Splices | 694-180067 |
| Placard - Cabin Door Emergency Release | 694-180069 |
| Placard - Cabin Door Emergency Release | 694-180070 |
| Placard - Electrical Circuit Breaker Box | 694-180071 |
| Placard - AN/ARN 14 Receiver | 694-180073 |
| Placard - LH Fuel Valve | 694-180074 |
| Placard - RH Fuel Valve | 694-180075 |
| Placard - AN/ARN 14 Power Supply | 694-180076 |
| Placard - AN/ARN 14 Radio Indicator Control | 694-180077 |
| Placard - AN/ARA 26 Keyer Control | 694-180078 |
| Placard - BC-1366 M Jack Box Disconnect Splices | 694-180079 |
| Placard - Pilot's Check | 694-180081 |
| Placard - Pilot's Check List | 694-180082 |
| Placard - Table, Navigators | 694-180083 |
| Placard - Junction Box Electrical Fuse | 694-180084 |
| Placard - Normal Operation, Anti-Icer Pump | 694-180085 |
| Placard - Oxygen Supply Info. | 694-180086 |
| Placard - Ldg. Gr. Position Information | 694-180088 |
| Placard - R-89/ARN-5A Radio Receiver Space | 694-180089 |
| Placard - Type C-1 Compass Signal Amplifier | 694-180091 |
| Placard - Generator Control Box Lid | 694-180092 |
| Placard - Left Generator Control Box | 694-180093 |
| Placard - Right Generator Control Box | 694-180094 |
| Placard - Rear Fuel Tank Cap | 694-180095 |
| Placard - Main Fuel Tank Cap | 694-180096 |
| Placard - Fuel Tank Cap | 694-180097 |
| Placard - Baggage Compartment Fuel Tank Cap | 694-180098 |
| Placard - Frequency Channel Designation Card | 694-180099 |
| Placard - Electrical Circuit Breaker Wiring | 694-180100 |
| Placard - Identification, Interphone Jack Box BC-1366-M | 694-180101 |
| Placard - Fire Extinguisher | 694-180103 |
| Placard - Pilot's Check List | 694-180109 |
| Placard - Forward Radio Terminal Box | 694-180110 |
| Placard - Right Generator Control Box | 694-180111 |
| Placard - Load Adjuster | 694-180112 |
| Placard - Brake Master Cylinder | 694-180113 |
| Placard - Left Generator Control Box | 694-180114 |
| Placard - Right Generator Control Box | 694-180115 |
| Placard - CB Fire Extinguisher Switch | 694-180116 |
| Placard - Left Generator Control Box | 694-180117 |
| Placard - Main Gear Shock Strut RH | 694-180190 |
| Placard - Main Gear Shock Strut RH | 694-180191 |
| Markings - Air Force Instrument | 694-183810 |
| Plate - Radio Call | 694-183811 |
| Placard - Auto Pilot Control | 734-180026 |
| Placard - Parking Brake | 734-180027 |
| Placard - Landing Gear Circuit Breaker | 734-180028 |
| Placard - Flap Position Lever | 734-180034 |
| Placard - Fuel Servicing Instructions | 734-180061 |
| Placard - Ldg. Gr. Switch | 734-180063 |
| Placard - Flap Position Indicator | 734-180075 |
| Card - Compass Correction | 734-183809 |
| Placard - Auto Pilot | 734-183860 |
| Placard - Gen. Field Switch Guard | 784-180027 |
| Placard - Lavatory Door | 794-180062 |
| Placard - Aileron Tab | 804-180053 |
| Placard - Warning Horn Silencer | 804-180059 |
| Placard - Gen. Control Box | 804-180092 |
| Placard - Firewall Magneto Plug | 814-180019 |
| Placard - Load Adjuster | 814-180029 |
| Placard - Flap Dynamic Contactor Box | 814-180043 |
| Placard - Anti-Icing Fluid | 884-180096 |
| Placard - Flux Gate Trans. Insp. Door | 894-180021 |
| Placard - Red Dome Light Switch | 894-180024 |
| Placard - Standby Compass | 894-180043 |
| Placard - Corrosion Inhibitor Cartridge | 894-180053 |
| Placard - Pilot's Instrument Lights Rheostat | 894-180055 |
| Placard - Co-Pilot's Instrument Lights Rheostat | 894-180056 |
| Placard - Engine Instrument Lights Rheostat | 894-180057 |
| Placard - Elevator Tab Indicator | 894-180074 |
| Placard - Landing Gear Switch | 894-180086 |
| Placard - Light Test Landing Gear Switch | 894-180089 |
| Placard - Lamp Identification | 894-180095 |
| Placard - Rear Radio Junction Box | 894-180096 |
| Placard - Lg Switch Mounting Screw, Warning | 894-180100 |
| Placard - Brake Master Cylinder | 894-180113 |
| Placard - Radio Controls Light Rheostat | 894-180141 |
| Dial - Elevator tab position | 894-180265 |
| Placard - Ldg. Gear Switch | 894-183874 |
| Placard - Baggage Compartment Tank Door | 900-180022 |
| Placard - Locating Main Spar CL | 900-180025 |
| Placard - Fire Extinguisher Engine Selector Switch | 994-180082 |
| Placard - Fuel and Oil Tanks | 103111 |
| Cover - Flap Clutch Adjustment | 104156 |
| Placard - Identification | 106223 |
| Placard - Brake Fluid | 107486 |
| Placard - Pratt and Whitney Operation | 108465 |
| Key Tag | 111187 |
| Placard - Model | 111745 |
| Placard - Landing Gear Patent | 112406 |
| Placard - Warranty | 112730 |
| Placard - Master Switch | 180006 |
| Placard - Fiber Washer Removed | 180009 |
| Placard - Aileron tab | 180053 |
| Placard - Cowl Flap Control | 180060 |
| Placard - Fuel Valve | 180061 |
| Placard - Landing Gear Clutch Cover | 180077 |
| Placard - Elevator Tab | 180086 |
| Placard - Landing Gear Clutch Cover | 180088 |
| Placard - Elevator Tab | 180090 |
| Placard - Ldg Gear & Flap Handcrank | 180091 |
| Placard - Emergency Exit | 180092 |
| Placard - Idle Cut Off | 180100 |
